Détails sur le produit:
|
|
| Lieu d'origine: | La Chine |
|---|---|
| Nom de marque: | Hanrui |
| Certification: | CE |
| Numéro de modèle: | HHA150 |
|
Conditions de paiement et expédition:
|
|
| Quantité de commande min: | 1 |
| Prix: | negotiable |
| Détails d'emballage: | contreplaqué |
| Délai de livraison: | 4-6 semaines |
| Conditions de paiement: | T/T, Western Union |
| Capacité d'approvisionnement: | 3000SETS/YEAR |
|
Détail Infomation |
|||
| Matériel: | SS304, SS316, Q235 | Taille principale: | DN50-DN1000 |
|---|---|---|---|
| La température fonctionnante: | -20℃~500℃ | methord de connexion: | type de gaufrette/bride |
| Type d'emballage: | film de bout droit /plywood etc. | Pression d'utilisation: | ATM-0.35MPa |
| Type d'entraînement: | manuel/électrique/pneumatique | Poli extérieur: | peut atteindre 400# |
| Mettre en évidence: | Tiroirs 150LB,Soupape à vanne de la glissière 0.1MPA,Soupape à vanne de la glissière SS316 |
||
Description de produit

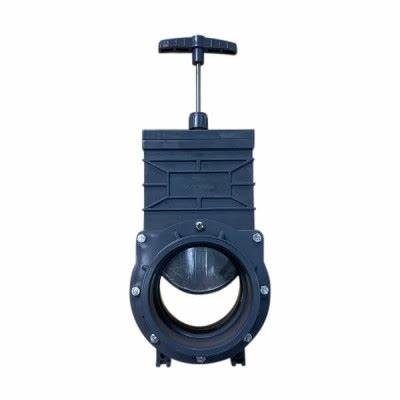

High automation level slide gate valves with closed structure
Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy slide gate valve at best price with us. We will offer you the greatest after-sales service and fast delivery.
Product details
Working pressure of slide gate valve: ATM/0.1MPA~0.35MPA
Working temperature of slide gate valve: -20℃~500℃
Main size: DN100-1000
Main material: SS304, SS304L, SS316, SS316L, WCB and etc.
Driving model: manual, pneumatic or electrical
Connection model: wafer type and flange type
Flange Connection Rating: ANSI B16.5 150LB, GB, HG, SH or designated by client
Mian Technical Data Sheet
| working pressure | ATM/LP--ATM/0.1MPA MP--0.35MPa |
| Working temperature | -20℃-200℃,≤500℃ |
| Main size | DN50-DN1000MM(2''-40'') |
| Main materials | SS304, SS304L,SS316, SS316L, WCB etc. |
| Connection Methord | Wafer type / Flange type |
| Applicable medium | Solid materials(Powder, particles, Powders/particles mixtures etc. ) |
Product application
This slide gate valve is mainly used in opening and closing pipeline in the solid material conveying system. Its fully closed structure is applicable for outdoor condition. And generally this knife gate valve is used at the bottom of silos, hoppers or other related equipment.
FRQ questions:
1. Can we choose the material of the slide gate valve ?
Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .
2. What should we supply you when we need to select a proper size ?
You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.
3. What is other information we need to supply before get a quotation?
We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
4. Can we choose the brand of the cylinder?
Yes , you can select cylinder brand according to your own requirement.
